Selecting the Right Chamfer Cutter Tip Geometry

/1 Comment/in , , , , , , /by

A chamfer cutter, or a chamfer mill, can be found at any machine shop, assembly floor, or hobbyist’s garage. These cutters are simple tools that are used for chamfering or beveling any part in a wide variety of materials. There are many reasons to chamfer a part, ranging from fluid flow and safety, to part aesthetics.

Due to the diversity of needs, tooling manufacturers offer many different angles and sizes of chamfer cutters, and as well as different types of chamfer cutter tip geometries. Harvey Tool, for instance, offers 21 different angles per side, ranging from 15° to 80°, flute counts of 2 to 6, and shank diameters starting at 1/8” up to 1 inch.

After finding a tool with the exact angle they’re looking for, a customer may have to choose a certain chamfer cutter tip that would best suit their operation. Common types of chamfer cutter tips include pointed, flat end, and end cutting. The following three types of chamfer cutter tip styles, offered by Harvey Tool, each serve a unique purpose.

Harvey Tool Chamfer Cutters

Pointed and Flat End Chamfer Cutters

Three Types of Harvey Tool Chamfer Cutters

Type I: Pointed

This style of chamfer cutter is the only Harvey Tool option that comes to a sharp point. The pointed tip allows the cutter to perform in smaller grooves, slots, and holes, relative to the other two types. This style also allows for easier programming and touch-offs, since the point can be easily located. It’s due to its tip that this version of the cutter has the longest length of cut (with the tool coming to a finished point), compared to the flat end of the other types of chamfer cutters. With only a 2 flute option, this is the most straightforward version of a chamfer cutter offered by Harvey Tool.

Type I Chamfer Cutter overview

Type II: Flat End, Non-End Cutting

Type II chamfer cutters are very similar to the type I style, but feature an end that’s ground down to a flat, non-cutting tip. This flat “tip” removes the pointed part of the chamfer, which is the weakest part of the tool. Due to this change in tool geometry, this tool is given an additional measurement for how much longer the tool would be if it came to a point. This measurement is known as “distance to theoretical sharp corner,” which helps with the programming of the tool. The advantage of the flat end of the cutter now allows for multiple flutes to exist on the tapered profile of the chamfer cutter. With more flutes, this chamfer has improved tool life and finish. The flat, non-end cutting tip flat does limit its use in narrow slots, but another advantage is a lower profile angle with better angular velocity at the tip.

Type II Chamfer Cutter overview

Type III: Flat End, End Cutting

Type III chamfer cutters are an improved and more advanced version of the type II style. The type III boasts a flat end tip with 2 flutes meeting at the center, creating a center cutting-capable version of the type II cutter. The center cutting geometry of this cutter makes it possible to cut with its flat tip. This cutting allows the chamfer cutter to lightly cut into the top of a part to the bottom of it, rather than leave material behind when cutting a chamfer. There are many situations where blending of a tapered wall and floor is needed, and this is where these chamfer cutters shine. The tip diameter is also held to a tight tolerance, which significantly helps with programing it.

Type III Chamfer Cutter overview

In conclusion, there could be many suitable cutters for a single job, and there are many questions you must ask prior to picking your ideal tool. Choosing the right angle comes down to making sure that the angle on the chamfer cutter matches the angle on the part. One needs to be cautious of how the angles are called out, as well. Is the angle an “included angle” or “angle per side?” Is the angle called off of the vertical or horizontal? Next, the larger the shank diameter, the stronger the chamfer and the longer the length of cut, but now, interference with walls or fixtures need to be considered. Flute count comes down to material and finish. Softer materials tend to want less flutes for better chip evacuation, while more flutes will help with finish. After addressing each of these considerations, the correct style of chamfer for your job should be abundantly clear.

Master Machine Manufacturing – Featured Customer

/1 Comment/in /by

Featured Image Courtesy of MMM USA

Master Machine Manufacturing, or MMM USA, is a family-owned and operated machine shop based out of Tulsa, Oklahoma. Master Machine is a rapidly expanding company which has seen serious growth as both a job shop and as an OEM Manufacturer of their own Quick Vise Handles and Piranha Jaws for CNC machinists.

Brothers Geordan and Nace Roberts, along with their mother, Sherry Roberts, are the owners of Master Machine Manufacturing. With Geordan and Nace, we dove into topics like having a growth mindset, working smarter instead of harder, and expanding a “job shop” business while also creating and manufacturing their own OEM products.

Tell us a little about Master Machine’s history and the type of work that your company does.

Geordan: Master Machine has been in business since 1981. Our father, George Roberts, started the business. At the beginning it was a pretty typical manual machine shop operating primarily as a job shop. As Nace and I got older, Dad introduced us to the business and we started working there part-time, eventually transitioning into full-time employees. In 1996, we transitioned to high precision machining with our first CNC machine – a Haas VF1, and we kept adding new CNC machines from there.

Nace and I took over in 2013 after our Dad passed. We had to make the transition from managers and shop foreman to owners and dealing with customers. We now own and operate the business with our mother, Sherry Roberts.

master machine

Geordan, Nace, Sherry, and the rest of the MMM USA team at IMTS with Mark Terryberry from Haas Automation Photo Courtesy of: MMM USA

At its core, Master Machine is a job shop that does a lot of high precision machining. We work on things like lab test equipment, parts for the aerospace industry, and a lot of parts for the oil and gas industry. More medical jobs and odd things like parts for off-road racing have started to come in recently as well. One cool thing about us is that we have the unique ability to operate as a job shop, but also to design and manufacture our own products. Many of your readers have probably seen some of our vise handles and jaws in use online, especially on Instagram.

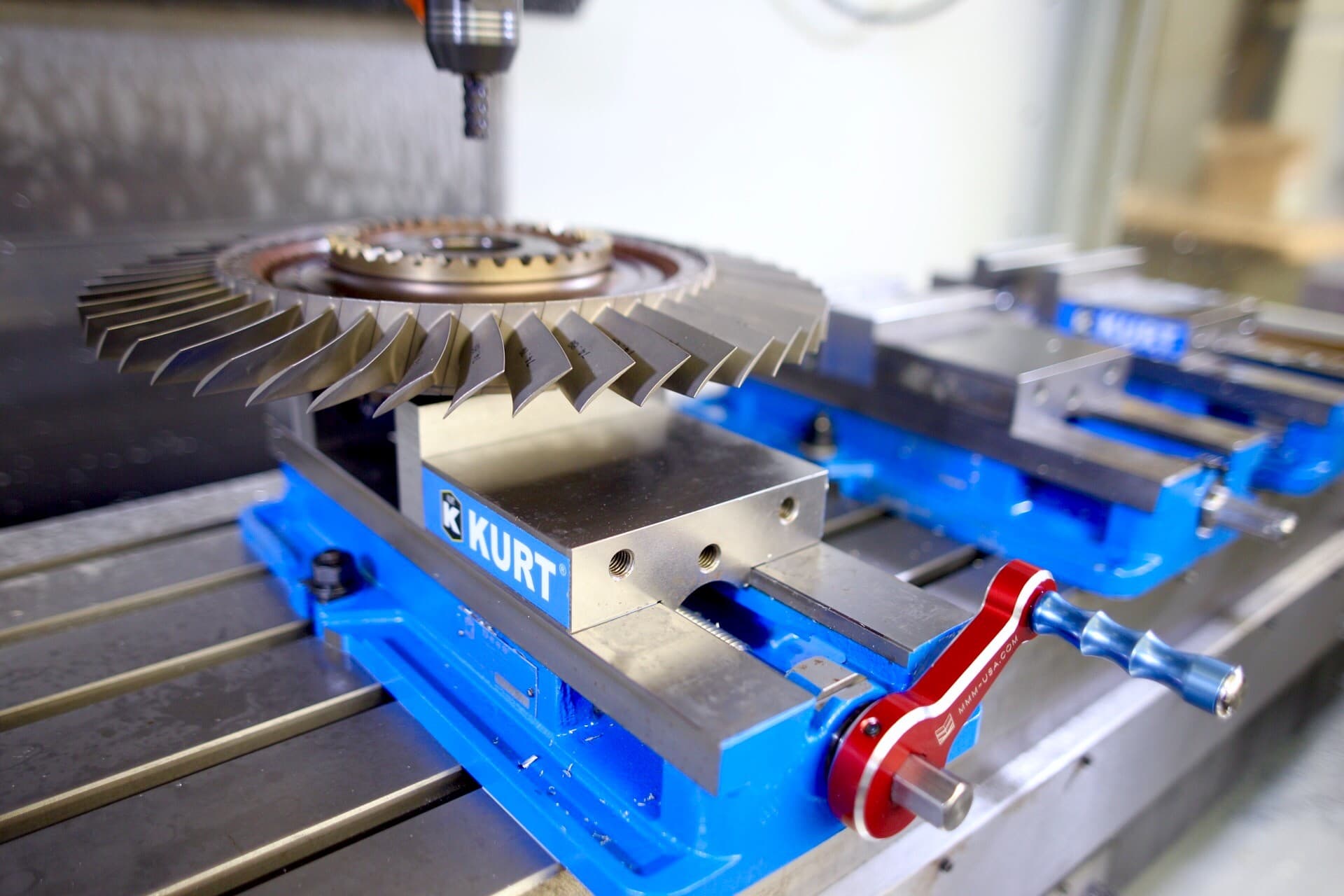

Your MMM USA Jaws and Vise Handles have become extremely popular in the CNC machining community. Where did you get the idea for that product?

Geordan: We had been using other brands of vise handles and jaws for a long time and got tired of buying products that were cheap and didn’t work well. We had this idea for a while, so in 2013 when things started to slow down a little bit, we had an opportunity to spend some time and design our own products. It was just about 2 years ago that we designed our first vise handle and Piranha Jaws. After using social media, showing them off at IMTS and other Industrial Trade Shows, they really started to take off. Our vise handles and jaws have really started to become a business of their own over the past couple of years.

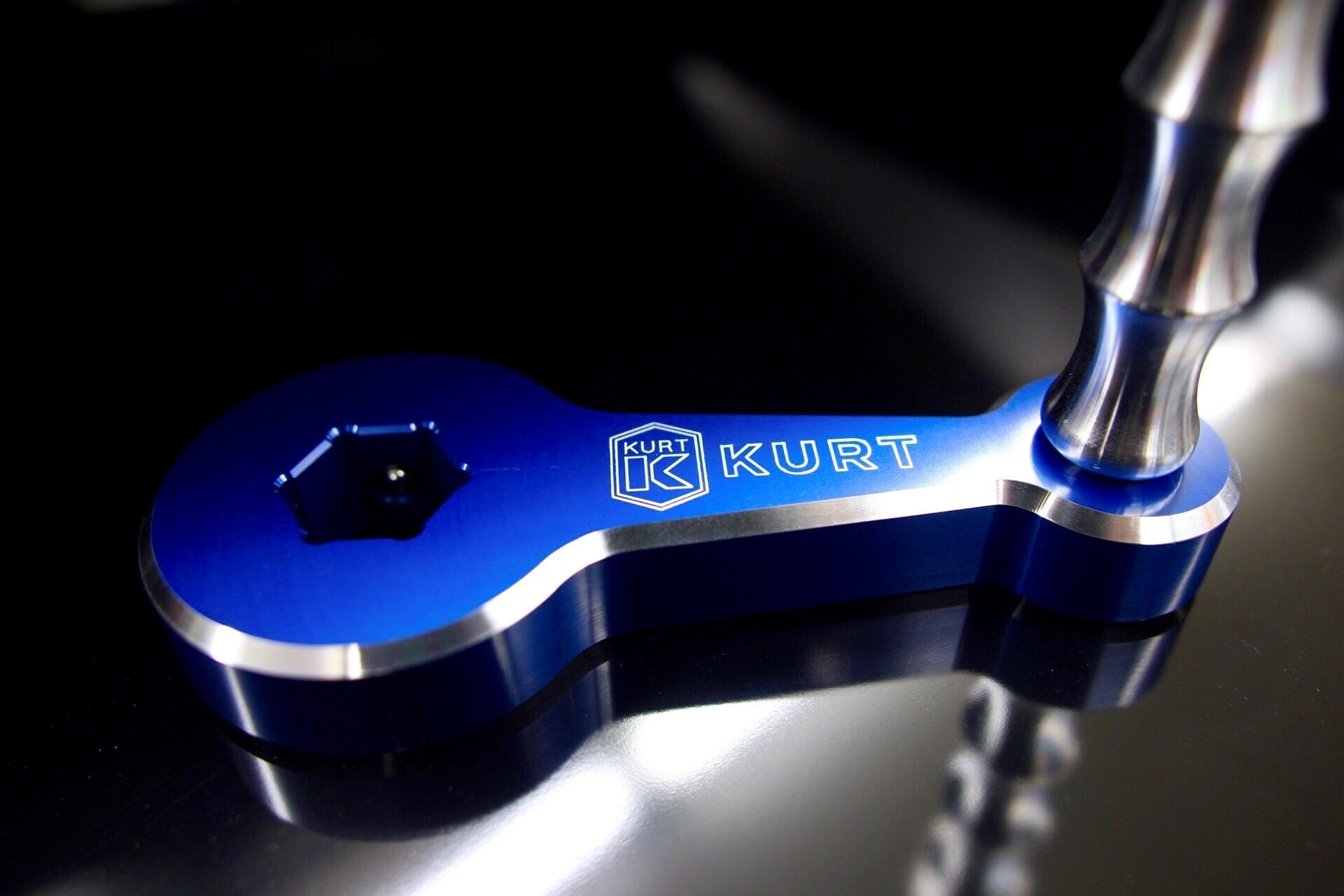

vise handle

Photo Courtesy of: MMM USA

Can you breakdown the shop for us? What are you working with in terms of shop size, machine capabilities, and software?

Nace: We operate as a 100% debt-free company, so we grow as we need to. We have been at our current location for 10 years with 5-7 different additions along the way. Our shop is now spread across 10,300 square feet.

We currently have 18 CNC milling machines, including our original machine, the 1996 Haas VF1. We have been growing very fast over the past 10 years. From 2004-2007, we only had 3 CNC mills, and we have acquired the other 15 machines all in the last decade. We like buying from companies that make their products right here in the USA, so we have grown our shop through the Haas line of machines. Almost everything we own here is made by Haas Automation. In fact, our Haas VF4 and our 5-axis Haas UMC750 are some of our biggest mills in the shop right now.

Geordan: We also have other capabilities in the shop. We can do welding, painting, surface grinding, and we have a nice setup of bar feeders and lathes. For software, we use a lot of BOBCAD V31 for our 4th and 5th axis mill programming and all of our lathe programming, Nace uses a lot of Autodesk Fusion 360 for the mill side of things.

For inspection, we have many inspection tools, including a Fowler Z-Cat CMM that can measure down to +/- .0002″ for our most high precision jobs.

How did you guys first get involved in manufacturing?

Geordan: I started machining with my Dad at age 13, and got into it full-time after high school, but was not yet fully committed. At this point, I learned manual and CNC machining entirely through working with my Dad and my Uncle.  It wasn’t until my Uncle, the main machinist in our shop, decided to split off and start his own shop that I was faced with a more urgent need to commit to the family business. So I decided to make manufacturing a full time career move and started learning fixturing, programming, and everything I needed to know to be successful. We still have a great relationship with my uncle and his shop and I wouldn’t be where I am today without him stepping out on his own.

Nace: I didn’t know what I wanted to do with my life. I just knew I wanted to make money, and a lot of money. I was actually in college for radiology and physical therapy, but I didn’t like the layout of the career path. I could not convince myself to wait to start making real money until I had finished a long education and received a license 6-8 years down the road.

Instead of physical therapy and radiology, I started taking more computer engineering courses and learned a lot about programming and technology. After my uncle left, I told my Dad I would like to be a bigger part of the business and take what I knew from my computer programming classes and apply it to the shop. Within a year I had gone from never running a CNC to fully doing everything on the machine. My computer programming skills definitely helped me make the transition into CNC machining and programming.

master machine

Photo Courtesy of: MMM USA

As a second generation owner of a family business, how do you stick to those family values while also rapidly expanding the business?

Nace: We have grown a lot with our systems and technology, but our culture has also changed since we took over. We educated ourselves on workplace culture and maintaining a positive work environment. When we were kids, Dad worked probably 100 hours a week and we were always fortunate that he was able to provide us with food, clothes, and a roof over our heads. But no matter how hard he worked, he can’t replace the time with us that was spent working.

One of the major improvements we focused on was trying to maintain repeatability. Everything in the shop is labeled in boxes and readily available for our employees. Ultimately, we want to do everything we can to make it easy as possible for our employees. We want to work smarter, not harder, so there is more time for our employees to spend with family and not spend their lives in the shop.

As owners, we often need to work odd hours of the day to maintain the business, but we do it in a way that makes sure we have our family time. There are many times where we will go home, have dinner and hang out with the family, and wait until they are all sleeping to go back to work until 2 or 3 a.m.. We will get back home later that morning to sleep a little and have breakfast with the family and send them on their way before heading back in to the shop.

Working with family, we have to remind ourselves that business is business, and outside of business it is all about family. It can be tough to differentiate those two, but you have to. We went to business counseling and learned how to respect family members and build up the team while also making tough business decisions. We have our tough moments at the shop, but at the end of the day this is still your family. You can’t carry any frustration with other family members outside of those shop doors and into the home.

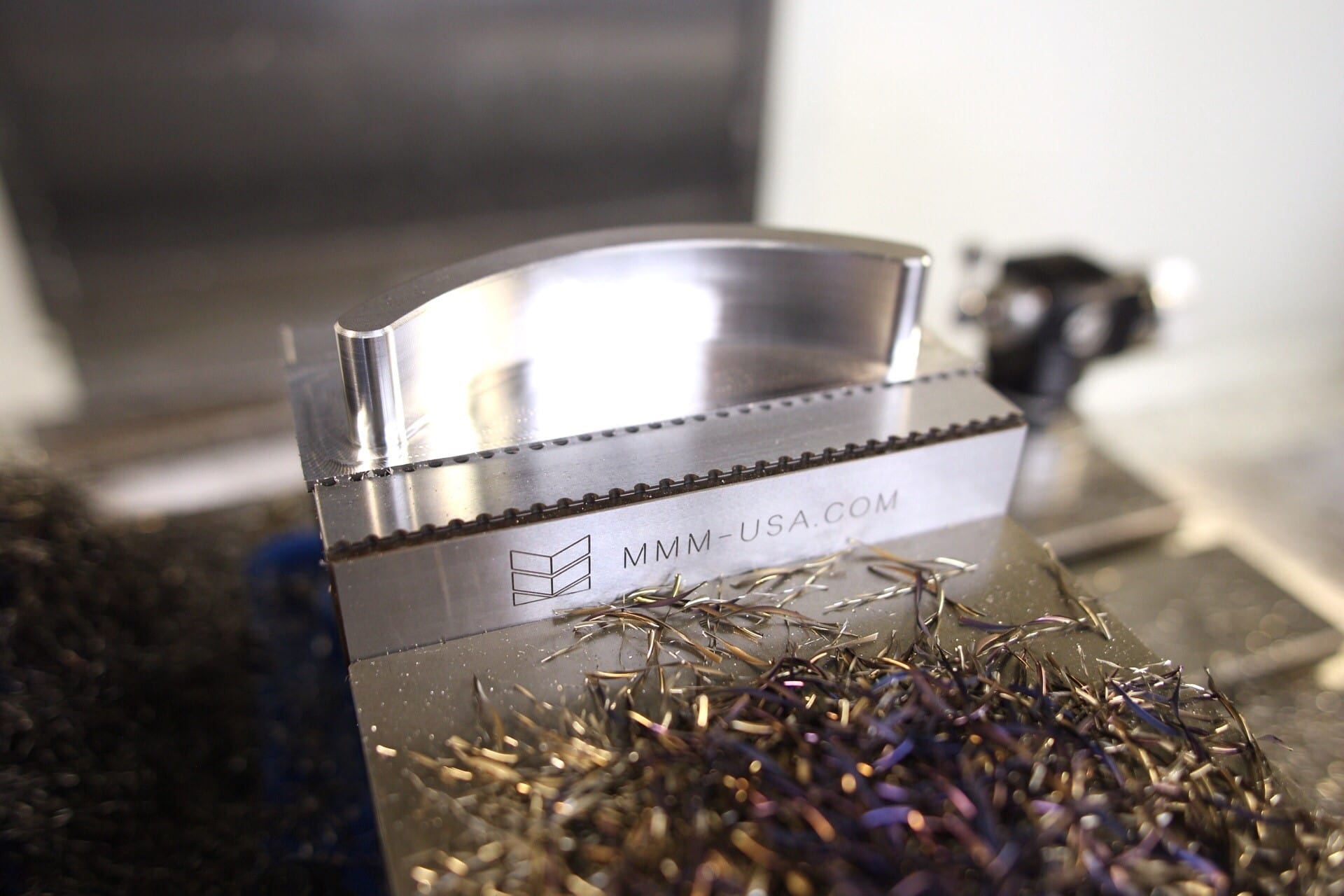

mmm usa piranha jaws

Photo Courtesy of: MMM USA

What are some other things you have done to maintain your “Work Smarter, Not Harder” mantra?

Geordan: One of the first things we did was look into getting more tooling and better tooling. We paid more for tools that can push harder and faster, and last longer. When Dad ran the shop, he would just buy whatever he thought we could afford and still get the job done. Now as CNC technology and advanced CAM systems have improved, the need for quality tooling is extremely important. Finding the best and most reliable tools helped take our shop to the next level and that is where Harvey Tool and Helical come into play.

Nace: We like to be the “purple cow” of the industry, differentiating ourselves in any way that we can. We strive to maintain a certain level of quality across our website, our Instagram page, our products, and the entire business as a whole. We are proud to support products made in the USA and keep supporting American manufacturing to help keep the business thriving in our shop and others. We are always happy to support companies like Haas, Harvey Tool, Helical, and many others who are doing it all right here in the USA.

What are some of your “go-to” Harvey Tool and Helical products?

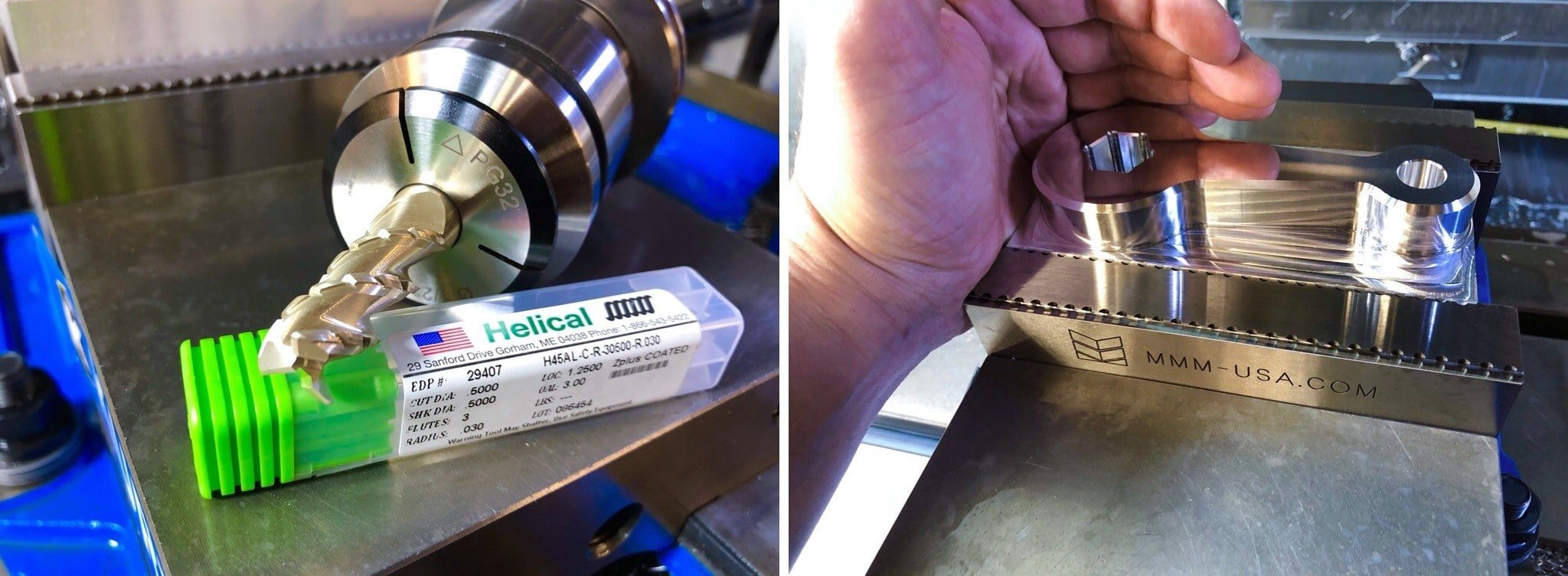

Geordan: The Helical Chipbreaker End Mill for Aluminum is key for making our vise handles. We use the ½” end mill and run it at 10k RPM, 300 IPM with a .700” DOC and 40% stepover. We can push those tools harder than others while also maintaining our product’s quality. We also rely heavily on Helical’s HEV-5 for our steel applications.

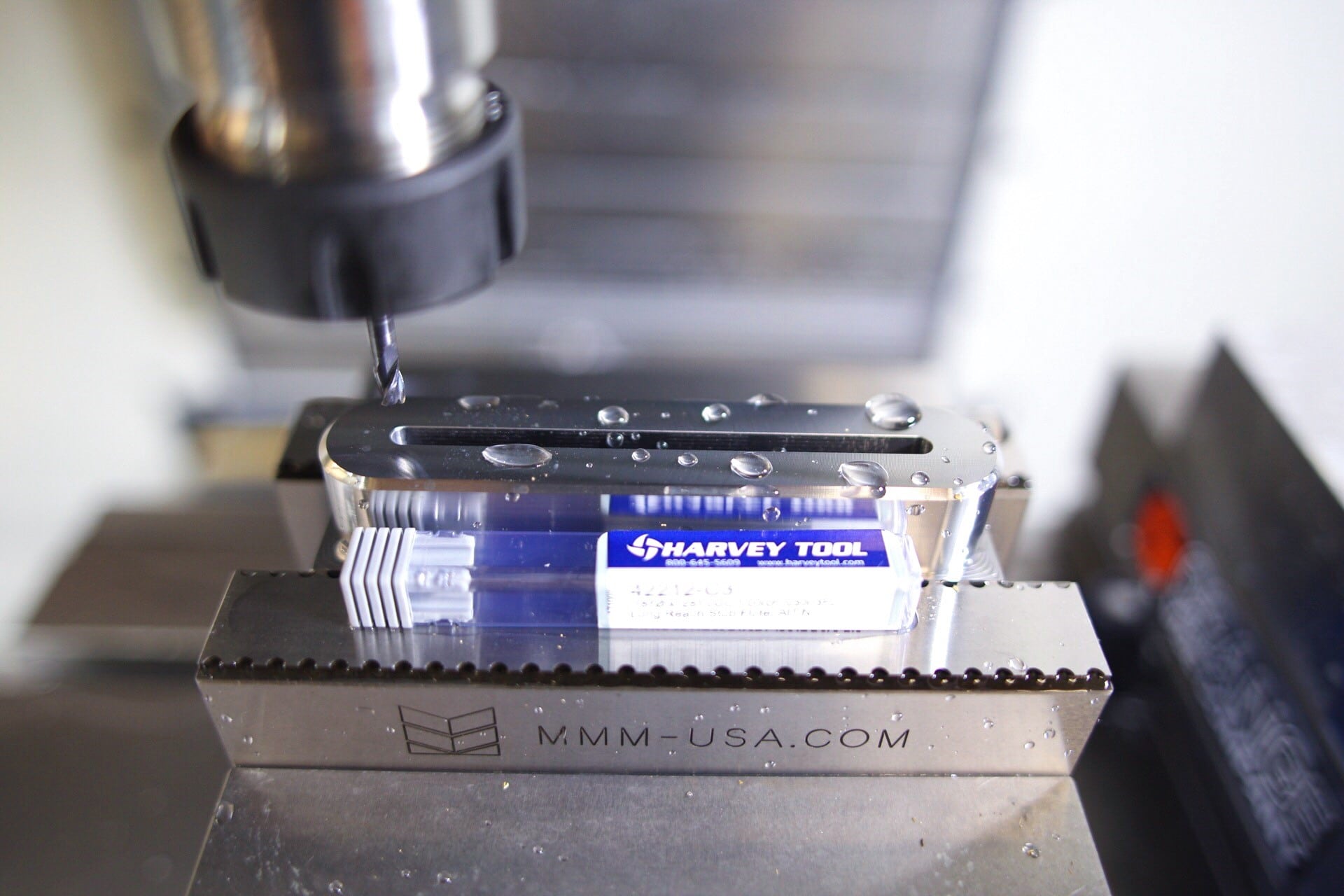

One of our favorite and most-used tools is the Harvey Tool 90 Degree Helically Fluted Chamfer Mill. We use the 3-flute style on everything that isn’t Aluminum because we can simply push it faster and harder than anything else that we have tried.

master machine

Photo Courtesy of: MMM USA

Nace: We actually keep a ton of other Harvey Tool and Helical products in our Autocrib. It made sense for us to get an inventory system, and we got a great deal on a system during the recession. Industrial Mill & Maintenance Supply got us hooked up with an Autocrib and a ton of tools, and they have been great at supplying it whenever we need more. It has helped a lot having an inventory system like that. It is reassuring to know that we have the best tools ready on hand so we can eliminate any potential downtime.

Master Machine is everywhere in the online machining community, specifically on Instagram. How has online marketing and social media changed the way you promote your business?

Geordan: Most people who run businesses seem to just hope that the word of mouth gets out there, or they have a website and hope it just goes viral one day and gets some attention. With the way the Internet is so crowded these days, you have to do something more to stand out. On our side, we have boosted our business through the use of paid online advertising with Google, boosting our SEO (Search Engine Optimization) to rank higher in search results, and being heavy users of social media like Instagram.

When I started the Master Machine Instagram account, I was really just using it to see what other machinists were doing. It was actually only a personal account for my use. I was skeptical of Instagram because of the Facebook community of machinists. I always viewed Facebook as a little more negative and less productive, while the Instagram community was much more collaborative.

mmm usa

Photo Courtesy of: MMM USA

I started by following people like Aeroknox, Kalpay, John Saunders, Bad Ass Machinists, and Tactical Keychains. I immediately noticed how helpful everyone was. I started posting as a business just about 2 years ago, when I posted our first version of the vise handles. Almost immediately people started asking to buy them. We were blown away by the response.

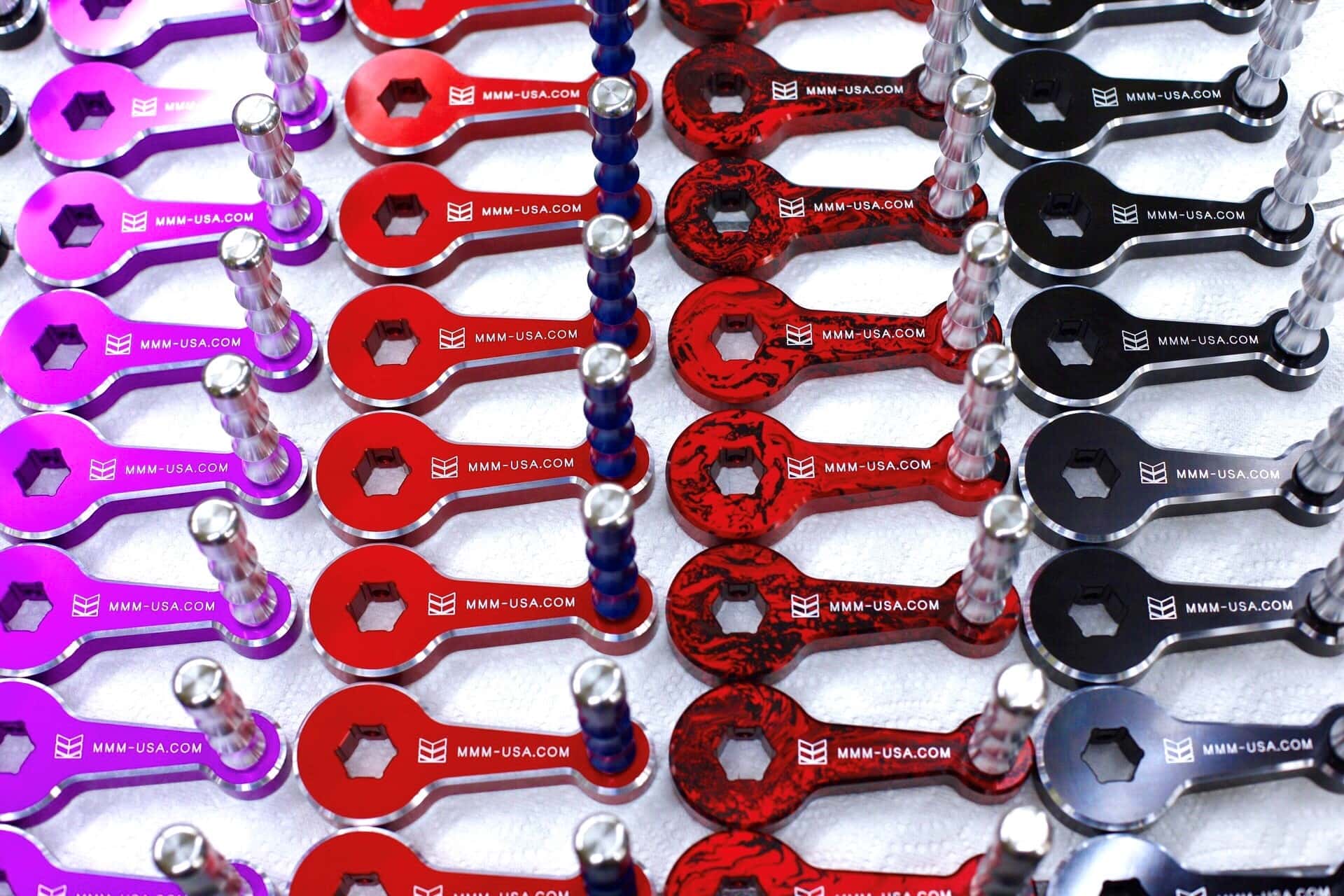

We didn’t set out to create something new with these handles, but by getting our name out there and filling a need for people following us, the hype continued to grow and grow and grow. Instagram has been a great tool for that aspect of the business, especially. We now have around 15 distributors across the US who are carrying our products, and are getting some great momentum. We also sell a lot of our products direct on our website, and 99% of that probably comes through Instagram.

Nace: We have actually landed distributors through someone following us online and going to their integrated distributor asking for our products. The distributor then called us and asked if they could carry our product on their shelves. Other online connections have also helped us land distributors through simple messages and phone calls.

Where do you see MMM USA in 10 years?

Nace: That’s a tough question…

At the shop, we always stress four major actions: Define, Act, Measure, and Refine. In our eyes, there are always better ways to do things and improve our processes. We hire people to have a growth mindset, and so we are redefining our future every day through our continual improvement process. We strive to always have that growth mindset to figure out how to do a job more efficiently. With constant improvement always taking place, it is hard to nail down exactly where the shop will be in 10 years, 5 years, or even 1 year from now. One thing is for sure – we will be successful.

Geordan: Something we do want to focus on is creating new assets, exploring new ventures, and doubling in size every year. We want to continue to release new products to build out our own product line and have MMM USA distributors worldwide.

Back in the day, Kurt Workholding was just a job shop, and now they are one of the most recognized workholding brands in the CNC machining industry. It is really hard to say where this ends or goes, but we think we have a bright future as both a job shop and as a supplier of our own OEM products for manufacturing.

vise handles

Photo Courtesy of: MMM USA

Are you currently hiring new machinists? If so, what qualities and skills do you look for?

Geordan: Every Tuesday we have an open interview at 4 PM. As you can imagine, with our company’s growth, we are constantly hiring. We are looking for people that are positive that have a growth mindset who can grow within the company. We always believe we can promote from within. Most of our people have been at Master Machine for 10-15 years because we can always move people up closer to the top and help them advance in their careers as we grow.

Nace: We are really focused on finding people with good attitudes, and people who want to be here. Skilled machinists are great, but they can be rare, so attitude and fitting in with the culture is huge. We can always take a good attitude and train the skill level up, but we can’t take a good skill level and change the bad attitude. We want team members who will coach each other up and help improve the team as a whole. We love working together and supporting the business together in every aspect of the business.

master machine

Photo Courtesy of: MMM USA

What is the best advice you have ever received?

Geordan: We really like “Notable Quotables.” Here are a couple of our favorites.

“The pen is for remembering, and the mind is for making decisions.”

We only have so much brain power to make crucial decisions, so we write all the day-to-day action items down on our checklists to make sure nothing is left undone. That frees our minds up from having to remember every little piece of the business so we can save that brain power for strategic decision making moments. We must be proactive and not reactive as we lead our team.

Nace: “Your employees want to follow someone who is always real, and not always right.”

As a leader, you need to take responsibility when you screw up, and be open with the team. Let them be a part of fixing the problem, and approach every situation looking at the positive.

Would you like to be considered for a future “Featured Customer” blog? Click here to submit your information.

Drill / End Mills: Drill Style vs. Mill Style

/0 Comments/in , , , , , , , /by

Drill / End Mills are one of the most versatile tools in a machinist’s arsenal. These tools can perform a number of different operations, freeing space on your carousel and improving cycle times by limiting the need for tool changes. These operations include:

  1. Drilling
  2. V-Grooving
  3. Milling
  4. Spot Drilling
  5. Chamfering

Shop Harvey Tool Dill/End Mills Today – Fully Stocked in Multiple Styles

The ability of the Drill / End Mill to cut along the angled tip as well as the outer diameter gives it the range of operations seen above and makes it an excellent multi-functional tool.

drill mill operations

Drill Style vs. Mill Style

The main difference between Drill / End Mill styles is the point geometry.  They are defined by how the flutes are designed on the end of the tool, using geometry typically seen on either an end mill or a drill.  While mill style tools follow the features of an end mill or chamfer mill, the drill style geometry uses an S-gash at the tip.  This lends strength to the tip of the tool, while giving it the ability to efficiently and accurately penetrate material axially.  While both styles are capable of OD milling, mill style tools will be better for chamfering operations, while drill style will excel in drilling.  The additional option of the Harvey Tool spiral tipped Drill / End Mill is an unprecedented design in the industry.  This tool combines end geometry taken from our helical flute chamfer cutters with a variable helix on the OD for enhanced performance. Versatility without sacrificing finish and optimal performance is the result.

drill mills
Left to Right: 2 Flute Drill Style End, 2 Flute Mill Style End, 4 Flute Mill Style End

Drill Mills: Tool Offering

Harvey Tool currently offers Drill / End Mills in a variety of styles that can perform in different combinations of machining applications:

Mill Style – 2 Flute

This tool is designed for chamfering, milling, drilling non-ferrous materials, and light duty spotting. Drilling and spotting operations are recommended only for tools with an included angle greater than 60°. This is a general rule for all drill mills with a 60° point. Harvey Tool stocks five different angles of 2 flute mill-style Drill / End Mills, which include 60°, 82°, 90°, 100° and 120°. They are offered with an AlTiN coating on all sizes as well as a TiB2 coating for cutting aluminum with a 60° and 90° angle.

drill mill

Mill Style – 4 Flute

4 flute mill-style Drill / End Mills have two flutes that come to center and two flutes that are cut back. This Drill / End Mill is designed for the same operations as the 2 flute style, but has a larger core in addition the higher flute count. The larger core gives the tool more strength and allows it to machine a harder range of materials. The additional flutes create more points of contact when machining, leading to better surface finish. AlTiN coating is offered on all 5 available angles (60°, 82°, 90°, 100°, and 120°) of this tool for great performance in a wide array of ferrous materials.

drill mill

Drill Style – 2 Flute

This tool is specifically designed for the combination of milling, drilling, spotting and light duty chamfering applications in ferrous and non-ferrous materials. This line is offered with a 90°, 120°, and 140° included angle as well as AlTiN coating.

drill mills drill style

Helical Tip – 4 Flute

The Helically Tipped Drill / End Mill offers superior performance in chamfering, milling and light duty spotting operations. The spiral tip design allows for exceptional chip evacuation and surface finish. This combined with an OD variable helix design to reduce chatter and harmonics makes this a valuable tool in any machine shop. It is offered in 60°, 90°, and 120° included angles and comes standard with the latest generation AlTiN Nano coating that offers superior hardness and heat resistance.

Tips for Maintaining Tight Tolerances

/1 Comment/in , , , /by

In manufacturing large production runs, one of the biggest difficulties machinists experience is holding tooling to necessary tolerances in holes, walls, and threads. Typically, this is an iterative process that can be tedious and stressful, especially for inexperienced machinists. While each job presents a unique set of challenges, there are rules of thumb that can be followed to ensure that your part is living up to its accuracy demands.

What is a Tight Tolerance?

A tolerance is an allowable amount of variation in a part or cutting tool that a dimension can fall within. When creating a part print, tolerances of tooling can’t be overlooked, as tooling tolerances can result in part variations. Part tolerances have to be the same, if not larger, than tool tolerances to ensure part accuracy.

Cutting tool tolerances are oftentimes applied to a tool’s most critical dimensions, such as Cutter Diameter, Length of Cut, Shank Diameter, and Overall Length. When selecting a cutting tool for a job, it’s critical to choose a brand that adheres to strict tolerance standards and reliable batch-to-batch consistency. Manufacturers like Harvey Tool and Helical Solutions prominently display tolerances for many critical tool dimensions and thoroughly inspect each tool to ensure that it meets the tolerances specified. Below is the table header for Harvey Tool’s line of Miniature End Mills – Square – Stub & Standard.

tolerances

Tolerances help to create repeatability and specificity, especially in an industry in which even a thousandth of an inch can make or break a final product. This is especially true for miniature tooling, where Harvey Tool is experienced in the designing and manufacturing of tooling as small as .001” in diameter.

How Are Tolerances Used?

When viewing a tolerance, there’s an upper and lower dimension, meaning the range in which the dimension of the tool can stray – both above and below what its size is said to be. In the below example, a .030″ cutter diameter tool’s size range would be anywhere between .0295″ and .0305.”

tooling tolerance

Maintaining Tolerances in Holemaking Operations

Holes oftentimes mandate the tightest dimensional tolerances, as they generally are meant to align perfectly with a mating part. To maintain tolerances, start first by testing the runout of both your machine and your tool. This simple, yet often overlooked step can save machinists a great amount of time and frustration.

Spotting Drills

Spotting Drills allow for drills to have a very precise starting point, minimizing walking or straying from a desired path. This can be especially beneficial when machining irregular surfaces, where accessing a hole’s perfect location can be more difficult.

spotting drills

Reamers

Reaming is great for any very tight tolerance mandate, because many Miniature Reamers have much tighter tolerances than a drill. Harvey Tool’s Miniature Reamers, for example, have tolerances of +.0000″/-.0002. for uncoated options and +.0002″/-.0000″ for AlTiN coated tools. Reamers cut on their chamfered edge, removing a minimal amount of material within a hole with the ultimate goal of bringing it to size. Because the cutting edge of a reamer is so small, the tool has a larger core diameter and is thus a more rigid tool.

miniature reamers

Maintaining Tight Tolerances While Machining Walls

Be Wary of Deflection

Maintaining tolerances when machining walls is made difficult by deflection, or the curvature a tool experiences when a force is applied to it. Where an angle is appearing on a wall due to deflection, opt for a reached tool to allow for less deflection along the tool’s neck. Further, take more axial depths of cut and machine in steps with finishing passes to exert less pressure on the tool. For surface finish tolerances, a long fluted tool may be required to minimize evidence of a tool path left on a part. For more information on ways to minimize deflection, read Tool Deflection & Its Remedies.tool deflection

Corner Radius End Mills

Corner radius End Mills, because they do not feature a sharp edge, will wear slower than a square end mill would. By utilizing corner radius tooling, fracturing on the tool edge will be minimized, resulting in an even pressure distribution on each of the cutting edges. Because the sharper edge on a square tool is less durable and more prone to cracking because of the stress concentration on that point, a corner radius tool would be much more rigid and thus less susceptible to causing a tolerance variation. For this reason, it’s recommended to use a roughing tool with a corner radius profile and a finisher with a square profile for an edge tolerance. When designing a part and keeping manufacturing in mind, if there is a potential for a wall with a radius as opposed to a wall with a square edge, a wall with a radius allows for easier machineability and fewer tool changes.

Maintaining Tight Tolerances While Threading

Making threads to tolerance is all about chip evacuation. Evacuating chips is an issue commonly overlooked; If chips within a hole have not been removed before a threading operation, there could be interference in the tool tip that leads to vibration and chatter within a thread. This would decrease the continuity of the thread while also altering the points of contact. Discontinuity of a thread could be the difference between passing and failing a part, and because threading is typically the last application when machining to decrease damaging the threads, it also increases the likelihood of chips remaining within the hole from other applications.

Tolerances Summarized

If you continue to experience troubles maintaining tight tolerances despite this blog post, consult the Harvey Tool or Helical Solutions tech team, as the problem may exist outside of your machine. Temperature and humidity can vary how gummy a material is, and can lead to workpiece expansion and contraction. Additionally, the foundation of buildings can expand and contract due to outside temperature, which can result in upped runout and irregular vibration in a spindle.

Selecting the Right Harvey Tool Miniature Drill

/0 Comments/in , , , , , , /by

Among Harvey Tool’s expansive holemaking solutions product offering are several different types of miniature drill options and their complements. Options range from Miniature Spotting Drills to Miniature High Performance Drills – Deep Hole – Coolant Through. But which tools are appropriate for the hole you aim to leave in your part? Which tool might your current carousel be missing, leaving efficiency and performance behind? Understanding how to properly fill your tool repertoire for your desired holemaking result is the first step toward achieving success.

Pre-Drilling Considerations

Miniature Spotting Drills

Depending on the depth of your desired machined hole and its tolerance mandates, as well as the surface of the machine you will be drilling, opting first for a Miniature Spotting Drill might be beneficial. This tool pinpoints the exact location of a hole to prevent common deep-hole drilling mishaps such as walking, or straying from a desired path. It can also help to promote accuracy in instances where there is an uneven part surface for first contact. Some machinists even use Spotting Drills to leave a chamfer on the top of a pre-drilled hole. For extremely irregular surfaces, however, such as the side of a cylinder or an inclined plane, a Flat Bottom Drill or Flat Bottom Counterbore may be needed to lessen these irregularities prior to the drilling process.

spotting drill

Tech Tip: When spotting a hole, the spot angle should be equal to or wider than the angle of your chosen miniature drill. Simply, the miniature drill tip should contact the part before its flute face does.

spotting drill correct angle

Selecting the Right Miniature Drill

Harvey Tool stocks several different types of miniature drills, but which option is right for you, and how does each drill differ in geometry?

Miniature Drills

Harvey Tool Miniature Drills are popular for machinists seeking flexibility and versatility with their holemaking operation. Because this line of tooling is offered uncoated in sizes as small as .002” in diameter, machinists no longer need to compromise on precision to reach very micro sizes. Also, this line of tooling is designed for use in several different materials where specificity is not required.

miniature drill

Miniature High Performance Drills – Deep Hole – Coolant Through

For situations in which chip evacuation may be difficult due to the drill depth, Harvey Tool’s Deep Hole – Coolant Through Miniature Drills might be your best option. The coolant delivery from the drill tip will help to flush chips from within a hole, and prevent heeling on the hole’s sides, even at depths up to 20 multiples of the drill diameter.

miniature drill coolant through

Miniature High Performance Drills – Flat Bottom

Choose Miniature High Performance Flat Bottom Drills when drilling on inclined and rounded surfaces, or when aiming to leave a flat bottom on your hole. Also, when drilling intersecting holes, half holes, shoulders, or thin plates, its flat bottom tool geometry helps to promote accuracy and a clean finish.

flat bottom drill

Miniature High Performance Drills – Aluminum Alloys

The line of High Performance Drills for Aluminum Alloys feature TiB2 coating, which has an extremely low affinity to Aluminum and thus will fend off built-up edge. Its special 3 flute design allows for maximum chip flow, hole accuracy, finish, and elevated speeds and feeds parameters in this easy-to-machine material.

drill for aluminum

Miniature High Performance Drills – Hardened Steels

Miniature High Performance Drills – Hardened Steels features a specialized flute shape for improved chip evacuation and maximum rigidity. Additionally, each drill is coated in AlTiN Nano coating for hardness, and heat resistance in materials 48 Rc to 68 Rc.

drill for hardened steel

Miniature High Performance Drills – Prehardened Steels

As temperatures rise during machining, the AlTiN coating featured on Harvey Tool’s Miniature High Performance Drills – Prehardened Steels creates an aluminum oxide layer which helps to reduce thermal conductivity of the tool and helps to promote heat transfer to the chip, as well as improve lubricity and heat resistance in ferrous materials.

drill for prehardened steel

Post-Drilling Considerations

Miniature Reamers

For many operations, drilling the actual hole is only the beginning of the job. Some parts may require an ultra-tight tolerance, for which a Miniature Reamer (tolerances of +.0000″/-.0002″ for uncoated and +.0002″/-.0000″ for AlTiN Coated) can be used to bring a hole to size. miniature reamer

Tech Tip: In order to maintain appropriate stock removal amounts based on the reamer size, a hole should be pre-drilled at a diameter that is 90-94 percent of the finished reamed hole diameter.

Flat Bottom Counterbores

Other operations may require a hole with a flat bottom to allow for a superior connection with another part. Flat Bottom Counterbores leave a flat profile and straighten misaligned holes. For more information on why to use a Flat Bottom Counterbore, read 10 Reasons to Use Flat Bottom Tools.

flat bottom counterbores

Key Next Steps

Now that you’re familiar with miniature drills and complementary holemaking tooling, you must now learn key ways to go about the job. Understanding the importance of pecking cycles, and using the correct approach, is vital for both the life of your tool and the end result on your part. Read this post’s complement “Choosing the Right Pecking Cycle Approach,” for more information on the approach that’s best for your application.

Contouring Considerations

/0 Comments/in , , , , /by

What is Contouring?

Contouring a part means creating a fine finish on an irregular or uneven surface. Dissimilar to finishing a flat or even part, cnc contouring involves the finishing of a rounded, curved, or otherwise uniquely shaped part.

CNC Contouring & 5-Axis Machining

5-axis machines are particularly suitable for contouring applications. Because contouring involves the finishing of an intricate or unique part, the multiple axes of movement in play with 5-axis Machining allow for the tool to access tough-to-reach areas, as well as follow intricate tool paths.

Recent  Advances

Advanced CAM software can now write the G-Code (the step-by-step program needed to create a finished part) for a machinists application, which has drastically simplified contouring applications. Simply, rather than spend several hours writing the code for an application, the software now handles this step. Despite these advances, most young machinists are still required to write their own G-Codes early on in their careers to gain valuable familiarity with the machines and their abilities. CAM software, for many, is a luxury earned with time.

Benefits of Advanced CAM Software

Increased Time Savings
Because contouring requires very specific tooling movements and rapidly changing cutting parameters, ridding machinists of the burden of writing their own complex code can save valuable prep time and reduce machining downtime.

Reduced Cycle Times
Generated G-Codes can cut several minutes off of a cycle time by removing redundancies within the application. Rather than contouring an area of the part that does not require it, or has been machined already, the CAM Software locates the very specific areas that require machining time and attention to maximize efficiency.

Improved Consistency
CAM Programs that are packaged with CAD Software such as SolidWorks are typically the best in terms of consistency and ability to handle complex designs. While the CAD Software helps a machinist generate the part, the CAM Program tells a machine how to make it.

Proper Tips

Utilize Proper Cut Depths

Prior to running a contouring operation, an initial roughing cut is taken to remove material in steps on the Z-axis so to leave a limited amount of material for the final contouring pass. In this step, it’s pivotal to leave the right amount of material for contouring — too much material for the contouring pass can result in poor surface finish or a damaged part or tool, while too little material can lead to prolonged cycle time, decreased productivity and a sub par end result.

CNC Contouring planes

The contouring application should remove from .010″ to 25% of the tool’s cutter diameter. During contouring, it’s possible for the feeds to decrease while speeds increases, leading to a much smoother finish. It is also important to keep in mind that throughout the finishing cut, the amount of engagement between the tool’s cutting edge and the part will vary regularly – even within a single pass.

Use Best Suited Tooling

Ideal tool selection for contouring operations begins by choosing the proper profile of the tool. A large radius or ball profile is very often used for this operation because it does not leave as much evidence of a tool path. Rather, they effectively smooth the material along the face of the part. Undercutting End Mills, also known as lollipop cutters, have spherical ball profiles that make them excellent choices for contouring applications. Harvey Tool’s 300° Reduced Shank Undercutting End Mill, for example, features a high flute count to benefit part finish for light cut depths, while maintaining the ability to reach tough areas of the front or back side of a part.

CNC Contouring ball end mill

Fact-Check G-Code

While advanced CAM Software will create the G-Code for an application, saving a machinist valuable time and money, accuracy of this code is still vitally important to the overall outcome of the final product. Machinists must look for issues such as wrong tool call out, rapids that come too close to the material, or even offsets that need correcting. Failure to look G-Code over prior to beginning machining can result in catastrophic machine failure and hundreds of thousands of dollars worth of damage.

Inserting an M01 – or a notation to the machine in the G-Code to stop and await machinist approval before moving on to the next step – can help a machinist to ensure that everything is approved with a next phase of an operation, or if any redundancy is set to occur, prior to continuation.

Contouring Summarized

CNC contouring is most often used in 5-axis machines as a finishing operation for uniquely shaped or intricate parts. After an initial roughing pass, the contouring operation – done most often with Undercutting End Mills or Ball End Mills, removes anywhere from .010″ to 25% of the cutter diameter in material from the part to ensure proper part specifications are met and a fine finish is achieved. During contouring, cut only at recommended depths, ensure that G-Code is correct, and use tooling best suited for this operation.

Multi-Functional Tools Every Shop Should Have

/2 Comments/in , , , , , , /by

If there is one thing that all machinists and shop managers can agree on, it’s that time is money. CNC tooling and material costs, employee wages, and keeping the lights on all add up, but most would agree that saving time is one of the best ways to make a shop more efficient.

Tool changes mid-job quickly add up when it comes to cycle times (not to mention tool costs), so using a tool capable of multiple operations whenever possible is an excellent first step. The following multi-functional tools are designed to save time and money at the spindle.

Drill/End Mills

drill mills

One look at Drill/End Mills or “Drill Mills” and it’s obvious that these multi-functional tools are capable of more than a standard end mill. Two of the intended operations are right in the name (drilling and milling). Besides the obvious, though, drill mills are intended for grooving, spotting, and chamfering, bringing the total to five separate operations.

drill mill operations

Considering the amount of tools normally required to perform all of these common operations, keeping a few drill mills in your tool crib ensures you’re always ready to tackle them, not to mention the potential extra spots in your tool magazine.

Undercutting End Mills

undercutting end mills

Undercutting End Mills, also known as lollipop cutters or spherical ball end mills are surprisingly “well-rounded” tools. Besides milling an undercut feature on a part, which is typically very difficult with a standard end mill, these tools are capable of a few other operations.

undercutting end mill operations

Using an undercutting end mill to deburr in your machine is an excellent way to save time and effort. Some slotting and contouring operations, especially when 5-axis milling, are made far easier with an undercutting end mill, and in some situations, clearance challenges make them necessary.

Double Angle Shank Cutters

double angle shank cutters

Often referred to the “Swiss Army Knife of Machining” due to their versatility, Double Angle Shank Cutters are 6-in1 multi-functional tools worth keeping on hand in any machine shop. Since these tools cut on all sides of their head, they are useful in a variety of situations.

multi-functional tools

With the ability to thread mill and countersink, Double Angle Shank cutters are perfect for holemaking operations. On top of that, their clearance advantage over standard end mills makes them extremely well suited to a variety of finishing operations in difficult to reach places.

Flat Bottom Tools

flat bottom tools

Flat Bottom Drills and Flat Bottom Counterbores are better suited to holemaking, but they are capable of a large variety of operations. They belong in a category together since their flat bottom geometry is what sets them apart from other cnc tooling in the same category. Flat bottom geometry keeps the tool from walking on irregular or angle surfaces and help to correct, straighten, or flatten features created by non-flat bottom tools.

Flat bottom drills are designed for the following operations:

multi-functional tools

While similar in some aspects, flat bottom counterbores are particularly well-suited for these uses:

flat bottom tools

Adjustable Chamfer Cutters

adjustable chamfer cutters

As discussed in a previous post, chamfer mills are capable of more than just chamfering – they are also well-suited for beveling, deburring, spotting, and countersinking. However, these adjustable chamfer cutters aren’t limited to a single angle per side – with a quick adjustment to the carbide insert you can mill any angle from 10° to 80°.

chamfer cutter inserts

When you account for the replaceable insert and the range of angles, this tool has a very high potential for time and tool cost savings.

Tools that are capable of a variety of operations are useful to just about any machine shop. Keeping your cnc tooling crib stocked with some or all of these multi-functional tools greatly increases your shop’s flexibility and decreases the chances of being unprepared for a job.

Why You Should Stop Deburring by Hand

/14 Comments/in , , , , , , /by

Deburring is a process in which sharp edges and burrs are removed from a part to create a more aesthetically pleasing final product. After milling, parts are typically taken off the machine and sent off to the Deburring Department. Here, the burrs and sharp points are removed, traditionally by hand. However, an operation that takes an hour by hand can be reduced to mere minutes by deburring parts right in the machine with high precision CNC deburring tools, making hand deburring a thing of the past.

High Precision Tools

Hand deburring tools often have a sharp hook-shaped blade on the end, which is used to scrape/slice off the burrs as it passes along the edge of the part. These tools are fairly simple and easy to use, but much less efficient and precise than CNC deburring tools.

hand deburring
Image Source: https://upload.wikimedia.org/wikipedia/commons/0/03/Deburring_tool.jpg

CNC deburring tools are also held to much tighter tolerances than traditional hand-deburring tools. Traditional cylindrical deburring tools typically have a diameter-tolerance window of +/- .008 versus a CNC deburring end mill which has a diameter tolerance of +/-.0005. The tighter tolerance design eliminates the location issues found in traditional deburring tools with loose tolerances, allowing them to be programmed like a traditional end mill.

While hand deburring tools often have just a single blade, CNC deburring tools feature double cut patterns and a high number of flutes. The double cut pattern contains both right hand and left hand teeth, which results in an improved finish. These tools leave completed parts looking far superior to their hand-deburred counterparts, with more consistent and controlled edge breaks. Additionally, there is a large variety of CNC deburring tools available today which can take full advantage of multi-axis machines and the most complex tool paths. For example, Harvey Tool’s 270° Undercutting End Mill is a great choice for multi-axis and more complex deburring options. Further, Deburring Chamfer Cutters are multi-use tools that can perform both chamfering and deburring accurately with no need for a tool change.

cnc deburring

Reduce Production Costs and Increase Profits

Having an entire department dedicated to deburring can be costly, and many smaller businesses may have pulled employees off other jobs to help with deburring, which hampers production. Taking employees off the deburring station and asking them to run more parts or man another department can help keep labor costs low while still increasing production rates.

cnc deburring
Stop Deburring By Hand and Increase Your Profits

By deburring right in the CNC machine, parts can be completed in one machining operation. The double-cut pattern found on many deburring tools also allows for increased speeds and feeds. This helps to reduce cycle times even further, saving hours of work and increasing production efficiency. Deburring in the machine is a highly repeatable process that reduces overall cycle times and allows for more efficient finishing of a part. In addition, CNC machines are going to be more accurate than manual operations, leading to fewer scrapped parts due to human error and inconsistencies.

STOP Deburring by Hand With Harvey Tool’s Wide Selection of Deburring Solutions

Simply put, the precision and accuracy of the CNC machine, along with the cost and time savings associated with keeping the part in the machine from start to finish, makes deburring in the CNC machine one of the easiest way to increase your shop’s efficiency.

Zootility – Featured Customer

/0 Comments/in /by

Featured Image Courtesy of Zootility

Zootility prides themselves on designing products that blend art and function for everyday use. Everything from design to manufacturing to distribution is done at their custom shop in Portland, Maine. Utilizing laser-cutters, laser-etchers, and CNC Machines, their skilled team works 15 hours a day to carry out their mission to get their incredibly thin, extremely useful “zootilitarian” tools into pockets everywhere. Zootility was founded by Nate Barr and was launched on the back of a successful Kickstarter campaign for their first tool, the PocketMonkey. Nate has now expanded Zootility and grown into several more products and brands, including the “WildCard” Wallet (Pocket) Knife, “Open Beer Season” bottle openers, the popular “Headgehog” Wallet Comb, and their new line of “Tülry” multi-tools that disguise as fashionable jewelry.

We visited Zootility at their shop in Maine and talked to Nate and Chris, one of their CNC Machinists, about using Kickstarter campaigns to launch new products, the state of the Manufacturing Industry, machining in very tight tolerances, and more in this latest Featured Customer blog.

Thanks for having us, Nate! Tell us a little bit about your shop and how you got started with Zootility.

Nate: Zootility really started as a maker shop for our first product, PocketMonkey. The goal was always to take the idea behind the PocketMonkey and grow it from just a Kickstarter project so that I could expand the business. I also wanted to make sure that I was learning something new myself every step of the way; I wanted to understand how to make our products, so we could keep production in-house and use our knowledge to expand the business in the future. When we started, I was re-investing all of our proceeds back into the business, allowing us to buy more equipment and really build out the shop. Our shop is fairly unique, where we now have nearly total vertical integration across the board. The only thing we need to do now is buy an iron mine and get our own materials!

How did you come up with the idea for the original Pocket Monkey?

Nate: I came up with the idea for the Pocket Monkey one day while I was locked out of my apartment. I was living in Boston at the time, and I would run out every night to the stores around the corner to buy food for dinner, typically only taking my wallet with me. One night, the door locked behind me, and I was locked out, sitting on my front steps and wishing I had some sort of a shim to slip the lock. I started thinking what that would look like and how it could fit in a wallet for easy carrying and realized that I could add on more tools like bottle openers and screwdrivers while still keeping it slim enough to fit in my wallet. I had studied Mechanical Engineering in college, so I had the background to create what I was envisioning.

Pocket Monkey

Photo Courtesy of: Zootility

You have used Kickstarter campaigns very successfully, not only to launch Zootility, but also to further your product line and expand the business. How was the Kickstarter experience, and would you recommend it to other entrepreneurs looking to launch a new business?

Nate: Our Kickstarter experience was great. We have raised up to $90,000 in a single campaign, and we have figured out a strategy that works for us. We found that if you set a reasonable goal that will allow you to cover start-up costs, say $25,000 rather than $100,000, people are more willing to take the time to invest. A reasonable goal gives people more confidence that the project will be funded, and that it will be successful, leading to more backers and more exposure; it is a great Marketing tool in that regard.

Kickstarter also levels the playing field for smaller companies like Zootility – I consider it to be “The Great Equalizer”. There is no longer a need to have tens of thousands of dollars for upfront costs when starting a business. You can spend a little bit of time creating the campaign and invest a small amount of money into that without taking the huge risk of throwing your life savings into an unproven idea. When I started Zootility, I was still working my day job and did not have the money to put up front, so Kickstarter was a natural fit. We have continued to use Kickstarter for new product lines because we are committed to manufacturing our products in the US, so Kickstarter campaigns allow us to validate new ideas and collect funds up front as we continue to grow the business. I do recommend it for all the entrepreneurs out there, and it has been a great tool that has contributed to our success.

You mentioned your commitment to manufacturing Zootility products in the US. What makes this ideal so important to you?

Nate: Let me start by saying that I think that Globalization is a good thing; it has pulled huge numbers of people across the world out of poverty. However, American policies have essentially allowed large corporations to gut the middle class by moving jobs overseas, especially in more rural areas. This has created unbalanced manufacturing and retail sectors. Personally, I believe things have gone too far, and standing behind our belief in American-made goods allows us to contribute to a more balanced approach to manufacturing. As with all things in life, a balanced approach is the best option. There will never be a time when 100% of goods can be feasibly made in America, so overseas manufacturing will continue, but bringing back more jobs to the middle class here in America is a good thing for the entire industry.

zootility finished pocketmonkey in packaging

Photo Courtesy of: Zootility

We have definitely made an effort to re-invest in our local community and the people who live here by manufacturing our products right here in Maine. Offshoring has resulted in a loss of knowledge and a real disconnect from the products that we use every day. Products that were previously considered to be of a high quality are now losing their shine, as less care is put into them and there is less appreciation and understanding of how these things are made. By investing in our local community and ourselves by learning something new every day, we believe we are doing our part to bring this knowledge back and instill more of a sense of pride in our employees and the products that they help to create.

You are originally from the Boston area. What made you decide to move the company and shop to Maine?

Nate: I had originally looked at a few places in the Boston-area, but it just didn’t make sense financially. There is a lot of great technology being developed in Boston by the innovative companies in the area, but to set up a manufacturing business in Boston was cost-prohibitive. By moving our shop to Portland, Maine we were able to save a lot on the space, which helped us in the early stages of the business.

The other thing was the lifestyle change. Portland has a great downtown area with lots of small businesses. There are restaurants, breweries, coffee shops, and plenty of locally-owned shops. It is also easy to get around, either by car or bike, and there is very little traffic throughout the city. I also wanted to locate our shop so that it felt like part of a community. We were able to find a great spot in downtown Portland surrounded by other manufacturers and small businesses. It makes for a great place to come to work every day.

What does the future hold for Zootility?

Nate: Right now, we do as much business in Q4 around the holidays as we do the entire rest of the year, so we have been exploring ways to make better use of the machines during the slower months. As we have completed installing and setting up our new machines, we have begun to do contract manufacturing to fill out the rest of the year. We have the unique ability to create small parts with extremely tight tolerances, and we are willing to do small volume, small batch manufacturing that other shops may turn down. We have been getting business from companies in Boston, who are looking for the “just in time” manufacturing which we can provide. The extra revenue from these projects will allow us to take off the Kickstarter training wheels and expand the business faster on our own.

tulry

Photo Courtesy of: Zootility

From a product standpoint, we are looking to launch more “serious” tools for the outdoor enthusiast. Right now we are in the process of launching our new RNGR brand, which will be a line of minimalist every day carry products, without the whimsical nature of the Zootility Tools products. We also are on the verge of shipping our new TÜLRY brand, which is a series of jewelry infused with every day carry tools.

Chris, you create a lot of very thin products. How does that affect your workholding when working in materials that thin?

Chris: Our workholding has been built entirely custom for our CNC machine, due to the nature of the products. For example, we are currently working on our WildCard knives, which are only .040″ thick. There really isn’t much on the workholding market that will work well for something that small, so our team actually machined our own metal strips on the CNC, held the knives down with small bolts, added some rubber bumpers so we do not have metal on metal contact, and it has worked really well for us so far. We also created custom workholding for the new TÜLRY line tools, which are also extremely thin.

helical solutions end mill

Photo Courtesy of: Zootility

The biggest challenge with our custom workholding is the additional time it adds to each job. Right now, we can run batches of 72 knives per cycle, with a cycle time of 28 minutes. Then, we need 20-25 minutes to unscrew each of the bolts, remove the finished knives, and then insert the new knives and screw the bolts back in. However, it is the only way we can machine products this thin with our tight tolerances, and we can still finish around 600 knives per day.

You mentioned your tight tolerances. What are some of the tolerances you are working in every day?

Chris: Right now, all of our tolerances are in the thousandths. For example, the WildCard knives have a tolerance of just +/- .003″, and the screwdriver tools on the TÜLRY necklace, while one of our highest tolerances, stick to just +/- .005″. The tightest tolerance we are currently working in is on the hex wrench tools for the TÜLRY necklace. The hex wrench tools have to be spot on, or they will be too loose when they go to be used on a hex nut. Right now, we like to keep those tools to a tolerance of +/- .001″.

How has your experience been using Harvey and Helical tools on these projects?

Chris: The Harvey and Helical tools have been great for us. When I started, we had another brand of end mills in stock, and they simply weren’t cutting it (no pun intended) in the types of heat-treated stainless steel which we were working in. We switched over to the Helical 7 flute end mills for roughing and finishing of the knives. Each knife has a very small shelf on it, which allows it to be a removable piece of the WildCard tool. We use a 3/8″ 7 flute Helical end mill with a .020″ corner radius for this cut, with a 3/8″ 7 flute square end mill for finishing. One interesting part of this job is that it requires a very low ADOC because the tools are already so thin, that the roughing we do removes only a very small amount of material.

assortment of end mills with pocketmonkey tools

Photo Courtesy of: Zootility

We also use both Harvey and Helical chamfer mills to create all of the box cutter and hex wrench TÜLRY tools. With the hex wrenches, we have found that the 60° tipped off chamfer mill has been great for creating those intricate cuts. With the box cutters, we needed an edge sharp enough to cut through tape and cardboard, but not sharp enough to cut through the skin. We have found that the 2 flute 120° chamfer mills work best for those cuts.

What is the biggest challenge you face at the CNC machine?

Chris: Right now, we laser cut all of the outlines for the knives from a thin sheet of steel. Then the knives come to us right off the laser cutter for machining. The laser cutting does create a rough finish on some of the knives, which can make them hard to lock down when machining. This can result in some movement, which can lead to the occasional scrapped part. The laser cutter can also leave burrs at the start and stop points, or leave a scorch mark or some slag on the knives, which can make them tougher to machine.

The Zootility shop uses a lot of different equipment. How has the CNC machine in particular impacted the shop as a whole?

Chris: Our CNC machine comes in handy for a lot of different things around the shop. As I previously mentioned, we used it to create our own custom workholding, which has worked very well for us. We also used the CNC machine to create all of our forming dies, which are used to create all of our tools from scratch. As we move into more contract manufacturing for other companies, these machines will get even more use when we are working on the small batch jobs we will (hopefully) be getting.

cnc machinist

Photo Courtesy of: Zootility

Would you like to be considered for a future “Featured Customer” blog? Click here to submit your information.

What You Need to Know About Coolant for CNC Machining

/9 Comments/in , , , , /by

Coolant in purpose is widely understood – it’s used to temper high temperatures common during machining, and aid in chip evacuation. However, there are several types and styles, each with its own benefits and drawbacks. Knowing which cnc coolant – or if any – is appropriate for your job can help to boost your shop’s profitability, capability, and overall machining performance.

Coolant or Lubricant Purpose

Coolant and lubricant are terms used interchangeably, though not all coolants are lubricants. Compressed air, for example, has no lubricating purpose but works only as a cooling option. Direct coolants – those which make physical contact with a part – can be compressed air, water, oil, synthetics, or semi-synthetics. When directed to the cutting action of a tool, these can help to fend off high temperatures that could lead to melting, warping, discoloration, or tool failure. Additionally, coolant can help evacuate chips from a part, preventing chip recutting and aiding in part finish.

Coolant can be expensive, however, and wasteful if not necessary. Understanding the amount of coolant needed for your job can help your shop’s efficiency.

Click Here to Shop Harvey Tool’s Fully Stocked Offering of Deep Hole Coolant Through Drills

Types of Coolant Delivery

CNC coolant is delivered in several different forms – both in properties and pressure. The most common forms include air, mist, flood coolant, high pressure, and Minimum Quantity Lubricant (MQL). Choosing the wrong pressure can lead to part or tool damage, whereas choosing the wrong amount can lead to exhausted shop resources.

Air: Cools and clears chips, but has no lubricity purpose. Air coolant does not cool as efficiently as water or oil-based coolants. For more sensitive materials, air coolant is often preferred over types that come in direct contact with the part. This is true with many plastics, where thermal shock – or rapid expansion and contraction of a part – can occur if direct coolant is applied.

Mist: This type of low pressure coolant is sufficient for instances where chip evacuation and heat are not major concerns. Because the pressure applied is not great in a mist, the part and tool do not undergo additional stresses.

Flood: This low pressure method creates lubricity and flushes chips from a part to avoid chip recutting, a common and tool damaging occurrence.

High Pressure: Similar to flood coolant, but delivered in greater than 1,000 psi. This is a great option for chip removal and evacuation, as it blasts the chips away from the part. While this method will effectively cool a part immediately, the pressure can be high enough to break miniature diameter tooling. This method is used often in deep pocket or drilling operations, and can be delivered via coolant through tooling, or coolant grooves built into the tool itself. Harvey Tool offers Coolant Through Drills, while Titan USA proudly offers Coolant-Fed ThreadMills

Minimum Quantity Lubricant (MQL): Every machine shop focuses on how to gain a competitive advantage – to spend less, make more, and boost shop efficiency. That’s why many shops are opting for MQL, along with its obvious environmental benefits. Using only the necessary amount of coolant will dramatically reduce costs and wasted material. This type of lubricant is applied as an aerosol, or an extremely fine mist, to provide just enough coolant to perform a given operation effectively.

To see all of these coolant styles in action, check out the video below from our partners at CimQuest.

In Conclusion

CNC coolant is all-too-often overlooked as a major component of a machining operation. The type of coolant or lubricant, and the pressure at which it’s applied, is vital to both machining success and optimum shop efficiency. Coolant can be applied as compressed air, mist, in a flooding property, or as high pressure. Certain machines also are MQL able, meaning they can effectively restrict the amount of coolant being applied to the very amount necessary to avoid being wasteful.
